Plugins

SourceBoost IDE Plugins add extra functionality to the simulator. The plugins provide virtual devices and components that can be connected to a simulated device.

The Plugins API is open, so you can create your own plugins.
The template project for SourceBoost v6 can be downloaded here and template project for SourceBoost v7 is available here.

Extra Plugins Pack Contents

• Digital Volt Meter
• Signal Generator
• Stop Watch
• I²C EEPROM
• LCD Display
• Variable power supply unit (PSU)
• Logic Analyzer

Plugins Screen Shots

LCD Display

Showing the display from a simple combination lock program.

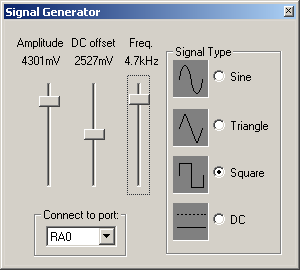

Signal Generator



Digital Volt Meter

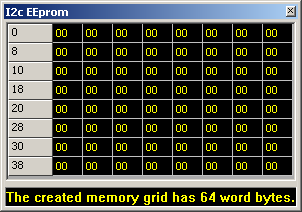

I²C Memory



Variable Power Supply Unit



License limitations

The plugins standard license is for use by a single user on multiple nodes (one user on more than one computer). The plugins site license is for use by multiple users on multiple nodes.
